Why Every Network Technician Needs a Fiber Crimping Machine

A Fiber Crimping Machine is a useful tool for securely connecting wires and connectors. It operates by deforming the connection around the wire, resulting in a strong attachment. Crimping machines make it simple to combine electrical wires, network cables, coaxial cables, and other cable types. It is beneficial for establishing a dependable and lasting relationship. Crimping machines are typically used for wires, although they may also be used for crimping other materials.

Advantages to utilizing a crimping machine

Using a crimping machine has various benefits:

• Crimping creates a tight and solid connection between wires and connectors, lowering the likelihood of loose connections or electrical failures.
• Crimping machines are generally simple to use, even for beginners. They offer a simple and effective technique to connect wires and connections.
• Crimping machines are valuable equipment to have on hand since they can be used for a variety of tasks thanks to replaceable heads and different dies.
• Cost-effective: Crimping machines and Fiber Polishing Machine are inexpensive and provide long-term value by allowing you to make robust connections without the need for extra materials such as solder.

Step 1: Gather the essential tools.

Crimping fiber optic connectors requires multiple instruments, including a crimp tool, a fiber remover, and Kevlar scissors. These tools must be of excellent quality to maintain precision and accuracy throughout the crimping operation.

Step 2: Prepare the Fibers.

Before crimping the connections, you must prepare the fibers. Use the fiber stripper to remove the necessary length of the fiber's protective covering. Trim the kevlar threads carefully to avoid damaging the fiber.

Step three: put the fiber into the connection.

Insert the prepared fiber into the connection. Ensure that the fiber is flush with the connector's end-face; this is critical for a stable connection.

Step 4: Crimp the Connector.

Place the connection in the crimp tool and apply the required pressure. Follow the manufacturer's instructions for the crimping machine attentively.

Step 5: check the connection.

Once the crimping process with the Fiber Crimping Machine is finished, check the connection to verify it is safe and stable. To test the connection's performance, use a fiber optic microscope or an optical time domain reflect meter.

Next: Key Application Areas of Fiber Optic Amplifiers in Modern Technology

Proper Crimping Techniques are Necessary For Terminating Fiber Optic Connectors

When manufacturing fiber optic cable assemblies, a seemingly simple procedure might have serious effects if not done correctly. This holds for crimping. Proper crimping procedures with a Fiber Crimping Machine are crucial throughout the fiber termination process to ensure a long-lasting connection. In reality, once all termination processes have been completed, the cable may be tugged without separating from the connection. The maximum draw force for each fiber optic cable assembly is specified in industry specifications and may be required by your customer.

When correctly crimped, the cable assembly is strong enough to endure fair amounts of pulling throughout the final phases of manufacture and installation. Even after installation, the cable assembly may have to tolerate certain mechanical stresses.

Crimping, a modest but important step in the manufacturing process, strengthens the cable assembly and protects the fiber. Proper crimping procedures assist in preserving the optical connection, which has a direct influence on long-term durability and performance.

Best-practice crimping techniques

Crimping requires the connection body, a metal crimping sleeve, and the material to be clamped, which is often aramid yarns, the cable's strength element.  Follow these techniques to optimize your crimping procedures with Fiber Crimping Machine:

Use the correct crimp tool - The connection manufacturer specifies the crimp tool, die set, crimp sleeve, and crimp force to obtain the optimum crimp and maximum pull force for that assembly. It is vitally important to employ the correct tools and components. The connection manufacturer's experts created this "match made in heaven" with mechanical tolerances in mind.   Crimped connectors are often textured and rough, increasing the contact surface area. Such nuances help to maximize the overall draw force of the assembly.

Using the incorrect crimp tool or die set might lead to a faulty cable assembly. A heavy-handed crimp might crush the connection. If this structure is compromised, the glass optical fiber may also be harmed. If the crimp is too light, the aramid strands will pull away, reducing the maximum pull force. As a side note, you can utilize the connection manufacturer's suggested manual crimp tool or an automated crimp tool, which provides repeatability and improves process control while reducing operator fatigue. You must also buy Fiber Polishing Film.

Next: How does a PM Fiber Coupler work?

Fiber Fuse Biconic Taper Machine: Revolutionizing Fiber Optic Splicing

In the world of fiber optics, precision and efficiency are paramount. One of the key devices that has made significant strides in advancing fiber optic technology is the Fiber Fuse Biconic Taper Machine. This cutting-edge piece of equipment plays a vital role in the process of fiber optic splicing, allowing for the seamless fusion of optical fibers with minimal signal loss and maximum performance.

What is a Biconic Taper Machine?

A Biconic Taper Machine is a specialized tool used for tapering optical fibers into a conical shape. This process, known as biconic tapering, ensures that two fibers can be fused together with minimal disruption to the signal flow. The machine utilizes a heating process that softens the fiber and allows it to be elongated into a tapered shape, enhancing the alignment of the fiber cores during fusion.

The Fiber Fuse Biconic Taper Machine is designed to optimize the tapering and splicing process by offering high precision and automated control. The resulting fiber is typically used in applications requiring high-bandwidth transmission, such as telecommunications, internet infrastructure, and advanced research labs.

Key Features and Benefits

1. High Precision: The machine allows for precise tapering, ensuring minimal loss of light during fiber fusion. This is essential for applications that demand high-speed, high-efficiency data transmission.
2. Increased Efficiency: The automated process reduces the time and labor required for fiber splicing, making it more cost-effective and scalable for large-scale fiber optic networks.
3. Versatility: It can handle various fiber diameters and tapering ratios, making it adaptable for different types of fiber optic cables, from standard single-mode fibers to specialty fibers used in scientific experiments.
4. Improved Performance: With its ability to fuse fibers with minimal insertion loss, the Biconic Taper Machine ensures enhanced signal integrity, improving overall system performance.

Applications of the Fiber Fuse Biconic Taper Machine

The Biconic Taper Machine is commonly used in the telecom industry, where high-performance fiber optic cables are essential for maintaining robust communication systems. It is also valuable in data centers, fiber sensing applications, and research environments, where custom optical fiber configurations are required to meet specific demands.

In conclusion, the Fiber Fuse Biconic Taper Machine is a vital tool in the fiber optic industry, enabling efficient and precise fiber fusion. Its ability to minimize signal loss, reduce splicing time, and handle different fiber types makes it an invaluable asset in any fiber optic network.

Follow our Facebook and Twitter for more information about our product.

Optical Waveguide Alignment Systems Are Revolutionizing Next-Gen Communication Networks

Precision is crucial in the ever changing field of communication technology. The need for quicker, more dependable connections is only increasing, whether it is via 5G networks, high-speed internet, or data centres that fuel the cloud. The Optical Fiber Alignment System is a quiet but significant invention that is working behind the scenes.

An optical fibre alignment system: what is it?

A high-precision method for aligning optical fibres with nanometre accuracy is called an optical fibre alignment system. By ensuring that the cores of two fibres are precisely aligned, these systems reduce insertion loss and increase signal strength. Even the most sophisticated fibre networks will experience inefficient transmission in the absence of precise alignment.

Why is Alignment Important?

Networks are under more strain than ever before due to the exponential increase in data consumption—think video streaming, remote work, IoT, and AI. Accurately aligning optical components has a direct impact on:

Transmission Speed: Data transport may be slowed down by misalignment.

Signal Quality: Signal loss is decreased by precise alignment.

Network Reliability: Outages and error rates are increased by faulty connections.

Optical Waveguide Alignment System

The Optical Waveguide Alignment System goes beyond conventional alignment, which just considers fibres. It is intended to align integrated photonic waveguides as well as optical fibres, which are crucial parts of photonic chips that manage light-based data transfer on a micro scale.

These systems are necessary in:

Faster, smaller, and more energy-efficient circuits are made possible via silicon photonics.

In quantum computing, accuracy cannot be compromised.

Advanced Sensing: When photonic integration is needed in aeronautical or healthcare applications.

Optical Waveguide Alignment Systems are driving innovation in a variety of sectors by guaranteeing nearly flawless coupling between fibres and waveguides.

The foundation of tomorrow's communication infrastructure is made up of Optical Fiber Alignment System and optical waveguide alignment systems, which may enhance the quality of your video conversations and enable cutting-edge technologies like photonic chips and quantum computing.

You Must Know This about Proper Polishing Techniques

For crimping, this is correct. To ensure a long-lasting connection, use proper crimping procedures throughout the fibre termination operation with a Fiber Crimping Machine. After all termination processes have been completed, the cable can be tugged without coming loose from the connection. Specify the maximum draw force for each fibre optic cable assembly industry specification, as well as any needs from your customer.

When correctly crimped, the cable assembly is strong enough to resist a decent amount of pulling throughout the final phases of manufacture and installation. Even after installation, the cable assembly may have to bear some mechanical stresses. A suitable fibre crimping machine ensures that force is applied to the connection rather than the delicate glass fibre.

Crimping, a modest but important step in the manufacturing process, often strengthens the cable assembly and protects the fibre. Proper crimping procedures assist in ensuring that the optical connection is maintained, which has a direct influence on dependability and performance over time. The Fiber Polishing Machine is also as useful as the crimping machine.

Best Crimping Techniques and Advice

The crimping procedure consists of the material to be clamped, the connector body, and a metal crimping sleeve, which is often made of aramid yarns, the cable's strongest element. To optimize your crimping methods, use these suggestions:

It is necessary to use the appropriate crimp tool. To get the optimum crimp and maximum draw force for that assembly, the connection manufacturer specifies the crimp tool for each connector body, die set, crimp sleeve, and crimp force. Using the appropriate tools and components is crucial. Crimped connectors are often textured and rough, which increases the contact surface area.

Using the incorrect crimp tool might result in a broken cable assembly; the crimp will most likely be too hard or too light. A crimp made with Fiber Crimping Machine with too much force might crush the connection. If this structure fails, the glass optical fibre may be destroyed as well. The aramid yarns might pull away if the crimp is too light, reducing the maximum pull power. You can utilize the connection manufacturer's suggested fibre curing oven or an automated crimp tool, which provides repeatability and improves process control by reducing operator fatigue.

Next: Key Application Areas of Fiber Optic Amplifiers in Modern Technology

Optimizing Polarization Control: A Guide to Fiber Rotation Systems

Polarisation in optics refers to how the electric field of light is directed throughout its travel. Many optical devices, particularly in high-precision applications such as medical imaging, quantum computing, and telecommunications, require a certain polarisation state to function properly. Maintaining polarisation may be challenging, especially when light travels over long distances or passes through complex systems. The Polarization Maintaining Fiber Rotation System comes in handy in this case. The goal of these customised optical fibres is to eliminate polarisation state changes. However, even with PM fibres, active control and fine-tuning are usually necessary; here is where axis and fibre rotation systems shine.

Polarisation's Function Fibre Rotation System Maintenance

By allowing for controlled manipulation of the whole fibre, the Polarisation Maintaining Fibre Rotation System improves the axis rotation system. This method allows users to rotate the fibre while keeping the integrity of the polarisation state and modify the fibre's orientation.

Connect to Cutting-Edge Systems: works with other elements that maintain polarisation, such as couplers and modulators.

Encouragement Multidimensional Control: Allows for rotational changes to increase optical system accuracy and adaptability.

These systems are critical for field activities, manufacturing processes, and laboratories where precise control over polarisation is required.

Applications for Polarization Maintaining Fiber Rotation System and PM Axis Communications

Preserving polarisation integrity during high-speed data transfer reduces signal degradation and ensures efficient data flow. PM These methods are critical for fibre alignment in dense wavelength-division multiplexing (DWDM) systems.

Imaging in medicine

Polarisation control enhances image quality and resolution in imaging techniques like optical coherence tomography (OCT). PM rotations systems help alter polarisation states for the best imaging results.

Defence and Aerospace

Reliable optical systems are critical in harsh environments. For polarization-sensitive navigation, targeting, and communication applications, PM axis and fibre rotation systems provide the necessary stability.

Research & Development

These systems are critical in labs developing cutting-edge optical technologies, ranging from light-matter interactions to innovative photonic devices.

Choosing the Best System for Your Requirements

When selecting a fibre rotation system or Polarisation Maintaining Axis Rotation System, consider the following factors:

• Requirements for Precision: Choose a system with the accuracy needed for your use case.
• Integration Capabilities: Check that it works with the optical components and systems you already have.
• Environmental Conditions: If you work in a harsh or dynamic setting, you should utilise strong solutions.
• Automation features: Determine if your process is better served by automated or human control.

Optimizing Optical Networks: The Importance of Precise Optical Fiber Alignment Systems

For accurate and reliable data transfer in an optical network, a precise fibre alignment with Optical Fiber Alignment System is necessary. Many optical couplings are present in the majority of optical networks, and even small (1%) losses can cause significant signal loss and problems with data transport. In these networks, minimising coupling losses is essential. A properly aligned fibre produces the highest coupling efficiency and, thus, the least amount of signal loss before an optical system is assembled or packed. Power requirements are decreased by little signal loss, which leads to fewer repeaters, lower investment costs, and fewer failures.

Key Motion Parameters for Fibre Alignment

When employing motion control systems for fibre alignment, the motion parameters selected for each axis have a significant impact on the alignment process. The following are the major characteristics to consider when selecting a motion controller for the position of peak power in fibre alignment processes with Optical Waveguide Alignment System.

Minimum Incremental Motion (MIM) - The minimum amount of motion that a device can consistently and reliably provide. It should not be confused with resolution, which is calculated using the lowest controller display value or encoder increment. Rather, MIM refers to the controller's real physical performance, which allows for the change of the fibre location while looking for the position where maximal power is reached. The MIM of a motion controller might vary from 100 nm to 1 nm. While a smaller MIM can align the fibre closer to the maximum peak power, this capability comes at a substantial cost in terms of alignment speed and power increments.

The repeatability parameter refers to a motion control system's capacity to position itself repeatedly. It might be unidirectional or bidirectional.

Position stability is a measure of a motion system's ability to maintain a position within a specific window of time and error. Optical Fiber Alignment System for assembly processes like bonding is dependent on the fibres' positional stability once the peak power has been determined. Position stability requirements vary from 0.5 µm to a few microns.

Fiber Optic Cable Manufacturing Process

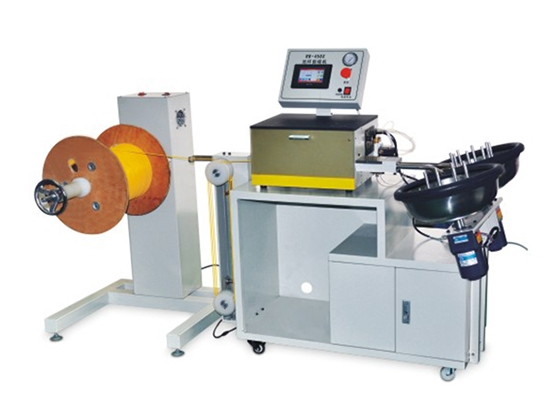

A Fiber Cable Cutting Machine is intended to cut cables of various diameters and wound them into the appropriate length and annular shape, with the benefits of accurate measurement, a series of cutting and winding, and simple automatic operation. It may adjust lengths, speeds, and numbers to increase manufacturing efficiency. This page will give some basic information on fibre optic cable-cutting machines.

What is a Fibre Optic Cable Cutting Machine?

A fibre optic cable cutting machine is a professional tool used in fibre optic patch cord/pigtail production lines to measure cable length, cut, count, wind, roll, and spray word marking (optional).

Features & Benefits

The qualities and benefits of a fibre optic cable-cutting machine are as follows:

• Cut up to 500m of cable length.
• Optional cable arrangement feature.
• Touch screen for convenient operation.
• High manufacturing efficiency.

Applications

Fibre optic cable cutting machines are used in fibre optic patchcord/pigtail production lines, FTTH, and other applications.

To begin manufacture of any form of patch cord, the cable must be cut to the proper size. This appears to be a straightforward operation, but it takes some caution.

We must be aware of various issues that may arise throughout the fibre cutting procedure if we are not diligent.

Avoid excessive bending. Throughout the cutting operation, we must preserve the bending radius within the cable's specifications. However, we must constantly examine the manufacturer's recommendations.

Never use greater pulling force than advised. Typically, the cable is cut from a spool containing 2 or 4 kilometres of cable. Even while utilising equipment that allows us to easily rotate the reel to retrieve the cable, we must avoid pulling on the outer insulation or jacket. The Fibre Polishing Machine is also practical.

The power element beneath the jacket is aramid yarn, often known as Kevlar. Under that are the primary and secondary buffers, as well as the fibre optic.

If we draw the coil cable through the jacket, it will pass through the aramid yard, which is the strength factor. Stretching is inevitable due to its lack of flexibility. Later, this soft plastic will tend to return to its original place, revealing the Kevlar.

To prevent this, the fibre cutting equipment must unwind the cable automatically when the counting machine pulls.

Still, there must be a system in place to mitigate the impact of the cut's commencement. This mechanism consists of two pulleys: one stationary and one movable. The cable travels through them multiple times, resulting in a cable buffer. This buffer will be used from the moment the unwinder is turned on and will keep up with the cable requirements.

Conclusion

The Fibre Cable Cutting Machine features excellent production efficiency and precision, as well as length and speed settings that are adjustable, automated, and simple to use.

Main source: https://sunmafiber.livejournal.com/

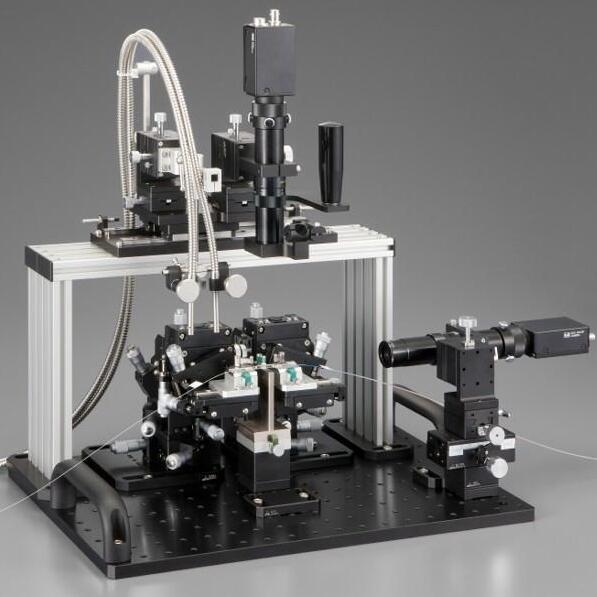

Optical Waveguide Alignment

Precise Optical Fiber Alignment System is required for precise and dependable data transmission in an optical network. Most optical networks contain several optical couplings, and even slight losses at these couplings can result in substantial signal loss and data transfer issues. Minimising coupling losses is crucial in these networks. Prior to assembly or packing of an optical system, good fibre alignment results in the best coupling efficiency and hence the least amount of signal loss. Minimal signal loss reduces power needs, resulting in fewer repeaters, cheaper investment costs, and fewer failures.

A well-characterized input beam is linked into the fibre under test, and a raster scan of the fibre is performed to identify first light, which is the output signal from the fibre that indicates when the laser beam first enters the fibre. Once the initial light is detected, the location of the fibre is modified in a lateral, longitudinal, and angular coordinate system to determine the peak intensity of the output optical signal. A successful fibre alignment solution necessitates the modification of various critical motion parameters utilising a precision motion control device and a search method appropriate for the application.

Key Motion Parameters For Fibre Alignment

When employing motion control systems for Optical Waveguide Alignment System, the motion parameters selected for each axis have a significant impact on the alignment process. The following are the major characteristics to consider when selecting a motion controller for the position of peak power in fibre alignment processes.

Minimum Incremental Motion - The least amount of motion that a gadget can consistently and dependably produce. It should not be confused with resolution, which is calculated using the lowest controller display value or encoder increment. Rather, MIM refers to the controller's real physical performance, which allows for the change of the fibre location while looking for the position where maximal power is reached. While a smaller MIM can align the fibre closer to the maximum peak power, this capability comes at a substantial cost in terms of alignment speed and power increments.

The repeatability parameter describes a motion control system's capacity to achieve a repeatable position. It might be unidirectional or bidirectional. Fibre alignment systems generally have a bidirectional repeatability of 1 µm to a few nm. This characteristic is useful for rapidly determining the peak power location of similar device designs.

Optical Fiber Alignment System is a measure of a motion system's ability to maintain a position within a specific window of time and error. Aligning fibres for assembly processes like bonding is dependent on the fibres' positional stability once the peak power has been determined. Position stability requirements vary from 0.5 µm to a few microns.

Follow our Facebook and Twitter for more information about our product.

You Must Know These about Proper Crimping Techniques

For crimping, this is correct. To ensure a long-lasting connection, use proper crimping procedures and a Fiber Crimping Machine throughout the fiber termination operation. After all termination processes have been completed, the cable can be tugged without coming loose from the connection. Specify the maximum draw force for each fiber optic cable assembly industry specification, as well as any needs from your customer.

When correctly crimped, the cable assembly is strong enough to resist a decent amount of pulling throughout the final phases of manufacture and installation. Even after installation, the cable assembly may have to tolerate some mechanical stresses. A suitable fiber crimping machine ensures that force is applied to the connection rather than the delicate glass fiber.

Crimping, a small but important step in the manufacturing process, typically strengthens the cable assembly and protects the fiber. Proper crimping procedures and Fiber Polishing Machine assist in ensuring that the optical connection is maintained, which has a direct influence on dependability and performance over time.

Advice on Best-Practice Crimping Techniques

The crimping procedure consists of the material to be clamped, the connector body, and a metal crimping sleeve, which is often made of aramid yarns, the cable's strongest element. To optimize your crimping methods, use these suggestions:

To get the optimum crimp and maximum draw force for that assembly, the connection manufacturer specifies the crimp tool for each connector body, die set, crimp sleeve, and crimp force. Using the appropriate tools and components is crucial. Crimped connectors are often textured and rough, which increases the contact surface area. In the overall assembly, such features contribute to the greatest draw force.

Using the incorrect Fiber Crimping Machine might result in a broken cable assembly; the crimp will most likely be too hard or too light. A crimp with too much force might crush the connection. If this structure fails, the glass optical fiber may be destroyed as well. The aramid yarns might pull away if the crimp is too light, reducing the maximum pull power. As a side note, you can utilize the connection manufacturer's suggested fiber curing oven or an automated crimp tool, which provides repeatability and improves process control by reducing operator fatigue.

Follow our Facebook and Twitter for more information about our product.

Fiber Optic Strippers: Know About the Finesse

The core technology of Fiber Cable Stripping Machine is fairly simple. The transmitter uses a blinking LED or laser, and the light travels down the fiber optic link to the receiver, which counts the blinks and translates them into digital or analog electrical impulses. It's straightforward, with one caveat: the wavelengths used in fiber optic communications are higher than those visible to the human eye, thus a technician staring at the tip of a fiber optic connector will not see the blinking signal.

A fiber that has not been properly prepared cannot be fully inserted into a connector, as there are openings in the back of connectors and splices. At that point, the only choice is to re-strip the fiber to remove the coating, however, the fiber frequently breaks at this stage, so the entire procedure must be repeated. This is one of the primary reasons why, when installing new fiber optic cables/links, there should be a lot of extra fiber cable at each end of the planned connection, as breaking the fibers during the connectorization process is quite common, and technicians should expect to break the fiber strands a couple of times during the manipulation and necessary stripping of the fiber strand.

While technicians must have certain hand skills, using a high-quality Fiber Cable Cutting Machine makes the operation easier and more exact. The common strippers provided with fiber optic tool kits are of the cheap sort, and they frequently need to be modified since the stripping slot may have left the manufacturer with a diameter aperture that cuts into the fiber strand more than necessary, resulting in a broken fiber. In addition, pirated versions of the typically affordable strippers have made their way to our shores.

If a technician notices that they are constantly breaking the fiber when stripping, the Fiber Cable Stripping Machine has to be adjusted. In most situations, fiber strippers' stripping slots may be changed with a tiny Allen wrench. Techs must be careful not to turn the adjustment nut more than a half turn; remember, we're working with microns. A clockwise adjustment widens the slot, while an anticlockwise adjustment tightens it.

Main Source: https://sunmafiber.livejournal.com/

The Fundamental Idea of Fiber Polishing

The speed and stability of the network in contemporary communication systems depend heavily on optical fiber's effective transmission capability. One of the most important elements in ensuring the quality of an optical fiber connection is the end face's smoothness and accuracy. The optical fiber polishing machine is a specialized piece of equipment that can efficiently enhance the quality of the optical fiber end face, lower light loss during signal transmission, and enhance network performance overall.

The purpose of fiber polishing is to use physical techniques to precisely smooth the fiber end face. The main idea is to utilize specialized polishing tools and materials to mechanically rotate, vibrate, or rub off the rough surface of the fiber end face layer by layer.

The distinction between polishing and grinding

Fiber polishing and grinding are both processes in the fiber end face preparation process, however they differ in precision and function. Fiber Polishing Film is also a part. In order to achieve nanometer-level smoothness and guarantee that the fiber end face is free of burrs and scratches, polishing is the last fine processing step after grinding.

Regulation of the polishing angle

Particularly with connections of the APC (angled physical contact) type, the polishing angle of the fiber end face is very crucial. By carefully regulating the polishing angle, the polishing machine makes sure that every fiber end face is polished at a certain angle, which lowers light reflection and increases the efficiency of signal transmission.

Benefits

High Efficiency: By quickly polishing a large number of optical fibers, the fiber polishing equipment significantly increases manufacturing efficiency.

Precision: The polishing machine's automated control system can guarantee each polishing's correctness and uniformity while lowering manual operation faults.

Flexibility: The polishing machine is very adaptable and may be used with a variety of fiber connector types, such as SC, FC, LC, etc.

Applications

Data centers, fiber-to-the-house (FTTH), telecommunications base stations, and other settings frequently utilize fiber polishing equipment. Because optical fibers in these industries must meet very high transmission performance standards, fiber polishing machine may greatly enhance the quality of optical fiber connections.

Follow our Facebook and Twitter for more information about our product.

Proper Crimping Techniques are Critical When Terminating Fiber Optic Connectors

A seemingly straightforward procedure in the production of fiber optic cable assemblies can have disastrous results if done incorrectly. Crimping is an example of this. Using the right crimping techniques and Fiber Crimping Machine throughout the fiber termination procedure is essential to achieving a long-lasting connection. The cable can really be tugged without separating from the connection when all termination procedures are finished. For every fiber optic cable assembly, the maximum draw force is specified by industry standards and, potentially, by your customer's specifications.

The cable assembly may tolerate a fair amount of pulling during the last phases of manufacture and installation if it is correctly crimped. The cable assembly might have to endure certain mechanical stresses even after installation. When the connection is properly crimped, force is applied to it rather than the fragile glass fiber.

A minor but effective step in the manufacturing process, crimping fortifies the cable assembly and shields the fiber. The Fiber Curing Oven also forms an integral part of fiber optics.

The connection body, a metal crimping sleeve, and the material to be clamped—typically the cable's strength component, aramid yarns—are all involved in the crimping process.

To get the optimum crimp and maximum pull force for that assembly, the connection manufacturer specifies the crimp tool, die set, crimp sleeve, and crimp force for each connector body. Using the right equipment and parts is vitally important.   Because crimping increases the contact surface area, the crimped portion of the connection is often textured and rough rather than smooth. These particulars help the unit as a whole achieve its maximum draw force.

If the incorrect die set or crimp tool is utilized, the crimp will probably be too light or too firm, which can lead to damage to the cable assembly. The connection may be crushed by a forceful crimp. The glass optical fiber may sustain damage if this structure is compromised. The maximum draw power may be reduced if the crimp is too light since the aramid strands may pull away. As an aside, you can utilize the Fiber Crimping Machine, which provides repeatability and improves process control while reducing operator fatigue, or the manual crimp tool suggested by the connection manufacturer.

Birefringence in Optical Fibers: Polarization-Maintaining Fibers and Rotation Systems

Even with a circularly symmetric design, optical fibers always show some degree of birefringence because, in reality, the symmetry is always broken by some mechanical stress or other influence. The result is a slow and uncontrollable change in the polarization of light traveling in the fiber, which is also dependent on the temperature and any bending of the fiber.

The Polarization Maintaining Fiber Rotation System principle

A polarization-maintaining fiber, which is a specialized fiber with a strong built-in birefringence rather than a fiber without birefringence, can be used to solve the aforementioned issue. Even if the fiber is bent, this polarization state will be maintained as long as the light's polarization when it is launched into it is parallel to one of the birefringent axes. Coherent mode coupling provides an understanding of the basic concept underlying this. The considerable birefringence causes the two polarization modes' propagation constants to diverge greatly, causing the relative phase of these copropagating modes to quickly drift away. Consequently, only when a disturbance along the fiber has a strong spatial Fourier component and a wavenumber that equals the difference in the propagation constants of the two polarization modes can it successfully couple both modes. The typical disturbances in the fiber fluctuate too slowly to accomplish efficient mode coupling if this difference is sufficiently big. The polarization beat length should be substantially shorter than the normal length scale that the parasitic birefringence fluctuates on, quantitatively speaking. The Polarization Maintaining Axis Rotation System is also quite necessary.

Methods for Identifying Fibers That Preserve Polarization

Adding two stress rods of a modified glass composition to preform on opposing sides of the core is a popular technique for creating strong birefringence. The stress components provide a certain amount of mechanical stress with a distinct orientation when a fiber is pulled from such a preform. Bow-tie fibers, which feature stress components with a distinct form and extend closer to the fiber core to provide a greater birefringence, can be made using numerous procedures. A further variation of that strategy is to surround the core with an ellipse cladding of various types of glass, which results in an elliptical-stress-layer fiber.

Using an elliptical core to produce so-called form birefringence is an additional method that does not rely on mechanical stress. Here, a certain amount of form birefringence is produced by the elliptical shape itself, even in the absence of any mechanical force. The Polarization Maintaining Fiber Rotation System is a vital aspect of fiber optics.

Follow our Facebook and Twitter for more information about our product.

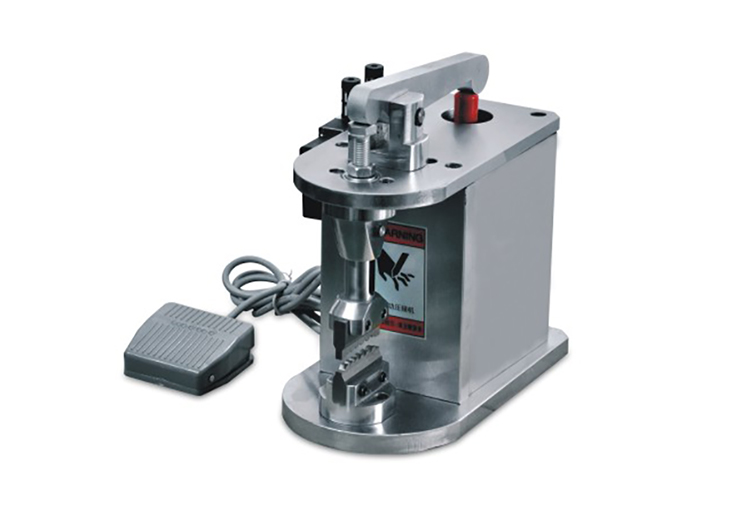

The Pros of Fiber Optic Crimping Machine

The foundation of the telecommunications networks in the current world is made up of fiber optic cables. The need for effective cabling solutions grows along with the need for dependable and fast internet, cable television, and phone services. The Fiber Crimping Machine is a vital piece of equipment in the fiber optics sector, used to secure connections to cable ends. The advantages of employing fbt fiber optic crimping machines will be covered in this article.

Precision and accuracy

Because of its special design, FBT fiber optic crimping machines can precisely and accurately crimp connections to cable ends. Tight tolerances provided by these crimping machines guarantee that the connections are positioned accurately and that the crimp force is applied uniformly. This accuracy lowers mistakes and guarantees that the final output satisfies the necessary requirements.

Higher rates of output

Additionally, a crimping machine needs to be quick. FBT fiber optic crimping machines are made to quickly create a large number of crimped items. This capacity is made possible via automation, in which the machine performs a number of crimping tasks using sensors and pre-programmed parameters. Manufacturers are able to increase manufacturing output and meet strict deadlines because to the high production rates. The Fiber Curing Oven, like the crimping machine, is quite essential.

Adaptability

Numerous cable and connection types may be handled by FBT fiber optic crimping equipment. This function eliminates the need for extra equipment by enabling the crimping of many connections and cables using the same machine. This adaptability increases the efficiency of the crimping process by saving money, time, and storage space.

Usability

Fbt fiber optic crimping machines are simple to use and intuitive. The controls and settings of the machines are easy to use and straightforward, which lowers the learning curve for novice operators. The ergonomic design of the equipment increases productivity and safety by reducing operator fatigue and promoting comfort.

To sum up, Fiber Crimping Machine is a vital instrument in the fiber optics sector due to their many advantages. Their fast production rates optimize output, and their accuracy and precision improve product quality. Their ergonomic design improves operator productivity and safety, and their adaptability and simplicity of use save money and time. An FBT fiber optic crimping machine is your best option if you're searching for a dependable and effective tool for crimping fiber optic cables.

Fiber Optic Manufacturing: Role of Fiber Curing Ovens and Fiber Polishing Film

The foundation of contemporary communication networks is fiber optic technology, which powers cable TV and the Internet alike. It is becoming more and more important to guarantee the quality and dependability of fiber optic cables as the demand for high-speed data transmission expands globally. The Fiber Curing Oven and Fiber Polishing Film are two crucial instruments in the fiber optic production process.

In the manufacturing process of fiber optics, a specialized piece of equipment called a fiber curing oven is utilized to cure the epoxy or glue used in the fiber optic connections. Adhesives are used to glue connectors to the fiber during the manufacturing of fiber optic cables. The glue is strengthened by the curing process, which also makes the fiber and its connector more aligned and connected.

The Significance of Fiber Curing

The fiber optic connection's lifetime and performance are directly impacted by the curing procedure. Maximum Strength is ensured by proper curing.

• Precise Coordination
• Extended Durability
• Improved Efficiency

Fiber Polishing Film: Guaranteeing Superior Bonds

An abrasive substance called Fiber Polishing Film is used to polish the ends of fiber optic connections. In order to achieve the appropriate surface smoothness and guarantee maximum signal transmission with the least amount of reflection and insertion loss, polishing is necessary.

Polishing Is Important for Fiber Optics

It is important to polish the connection end-faces for the following reasons:

• Sleek Surface for Ideal Transmission of Signals
• Reducing Introspection
• Accuracy for Minimal Insertion Loss
• Extended Durability
• The Operation of Fiber Polishing Film

Depending on the needed level of accuracy, fiber polishing film is available in a range of grit levels, from coarse to fine. In order to create a mirror-like quality, the connector end-face is polished through a series of processes using progressively finer grits.

In order to obtain a clean, reflecting surface, the polishing procedure usually starts with a coarse grit to remove any big defects or excess adhesive and is then finished with finer grits. To guarantee consistency, the connection is polished using a rotary or linear motion while the film is positioned on a polishing pad.

The Interaction of Polishing and Curing

The Fiber Polishing Film makes sure that the connector end-face is completely smooth and aligned for optimal signal transmission, while the Fiber Curing Oven provides a strong and dependable connection between the fiber and the connector. These two instruments work in tandem to ensure that fiber optic cables are capable of meeting the enormous data demands of the modern digital world.

Follow our Facebook and Twitter for more information about our product.

Fiber Cable Cutting Machine: Appropriate Cable Stripping Tool

Fiber optic cables, designed to transport data over long distances with little signal loss, are constructed of thin glass or plastic fiber strands coated in layers of protection. They have a huge bandwidth and are resistant to electromagnetic interference, making them ideal for internet connectivity, telephony, and many industrial uses.

Efficient removal of fiber optic cables is a crucial phase in the installation and maintenance process. By removing the outer jacket and other protective layers, the bare fibers can be exposed for splicing, termination, or connectorization. However, because hand stripping with a Fiber Cable Stripping Machine may be labor-intensive, time-consuming, and prone to human error, there is a risk that the delicate fibers will be harmed. Therefore, a fiber cable stripping machine is employed.

Let the fiber cable stripper begin.

The Fiber Cable Cutting Machine streamlines and automates the process of stripping fiber optic cables, which has various advantages over traditional human procedures.

Accuracy and Uniformity: With their advanced sensors and precise blades, these machines strip cables consistently and correctly, minimizing the risk of fiber damage.

Efficiency: By automating the stripping process, these devices significantly reduce labor costs and increase efficiency, allowing for faster fiber optic network expansion and higher throughput.

Versatility: Because fiber cable stripping and cutting machines are designed to handle various types and sizes of fiber optic cables, they may be applied in a wide range of data centers, manufacturing, and telecommunications applications.

Safety: With integrated safety features and safeguards, these machines lessen the risk of user accidents from manual cable stripping and offer a secure working environment.

Ease of Use: Technicians may quickly grow used to the instruments and perform stripping operations with ease since modern stripping machines are simple to operate and require little training.

Applications for Fiber Cable Stripping Machines

Because of their adaptability, fiber cable stripping machines are beneficial tools in many different industries:

Communications: This equipment is used by telecom companies and service providers for the installation and upkeep of fiber optic networks.

Fiber cables are necessary in data centers to connect networking devices and servers. Stripping machines are provided to facilitate simpler administration and maintenance of cables.

Manufacturing: Fiber optic cables are necessary for the production of sensors, medical equipment, and electronic goods. Fiber Cable Stripping Machine offers consistent and predictable quality all the way through the production process.

Many Essential Facts about FBT Systems

Fiber optics technology has changed communication infrastructures, and the Fiber Fuse Biconic Taper Machine is at the cutting edge of this advancement. This essay explores the amazing features and wide range of applications of FBT systems in contemporary communications and other fields.

First of all, The FBT Systems' Fundamentals

Among the intricate web of fiber optic transmission, FBT systems are the epitome of engineering precision. By combining several optical fibers into a single, tapered structure, FBT systems provide seamless light coupling and signal transport, therefore raising the bar for optical networking reliability and efficiency.

Improving the Infrastructure for Telecommunications

FBT systems have a major impact on the development of telecom infrastructure. By lowering signal loss and reflection, these techniques provide optical signal integrity across extended distances. Whether dividing signals for distribution or merging them for amplification, FBT systems offer a solid option for high-speed data transport in telecom networks.

Precision in optical transmission

When it comes to optical networking, accuracy is everything. FBT Fiber Taper Machine provides exceptional control over light propagation, making them ideal for wavelength division multiplexing and power monitoring. Their small size and low insertion loss allow for smooth data transfer over several networks, making them perfect for inclusion into optical switches, routers, and other networking equipment.

Different Applications

FBT systems have several applications outside of telecommunications. But they are particularly effective in telecommunications. These systems find use in sensing technologies, where precise control over light enables accurate measurements of many different parameters, including strain, temperature, and pressure.

They are highly influential in shaping the future of fiber optics technology because of their accuracy, adaptability, and longevity in a variety of settings. With further study and development, FBT technologies have the potential to completely transform how people interact with one another and the environment. FBT systems raise the bar for optical networking efficiency.

Fiber Fuse Biconic Taper Machine is essentially an amazing combination of cutting-edge optics and precision engineering that are creating new opportunities not just in telecommunications but also in other fields.
