Fiber Optic Manufacturing: Role of Fiber Curing Ovens and Fiber Polishing Film

The foundation of contemporary communication networks is fiber optic technology, which powers cable TV and the Internet alike. It is becoming more and more important to guarantee the quality and dependability of fiber optic cables as the demand for high-speed data transmission expands globally. The Fiber Curing Oven and Fiber Polishing Film are two crucial instruments in the fiber optic production process.

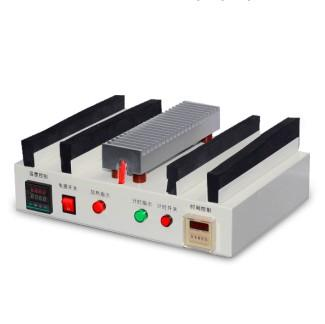

In the manufacturing process of fiber optics, a specialized piece of equipment called a fiber curing oven is utilized to cure the epoxy or glue used in the fiber optic connections. Adhesives are used to glue connectors to the fiber during the manufacturing of fiber optic cables. The glue is strengthened by the curing process, which also makes the fiber and its connector more aligned and connected.

The Significance of Fiber Curing

The fiber optic connection's lifetime and performance are directly impacted by the curing procedure. Maximum Strength is ensured by proper curing.

• Precise Coordination
• Extended Durability
• Improved Efficiency

Fiber Polishing Film: Guaranteeing Superior Bonds

An abrasive substance called Fiber Polishing Film is used to polish the ends of fiber optic connections. In order to achieve the appropriate surface smoothness and guarantee maximum signal transmission with the least amount of reflection and insertion loss, polishing is necessary.

Polishing Is Important for Fiber Optics

It is important to polish the connection end-faces for the following reasons:

• Sleek Surface for Ideal Transmission of Signals
• Reducing Introspection
• Accuracy for Minimal Insertion Loss
• Extended Durability
• The Operation of Fiber Polishing Film

Depending on the needed level of accuracy, fiber polishing film is available in a range of grit levels, from coarse to fine. In order to create a mirror-like quality, the connector end-face is polished through a series of processes using progressively finer grits.

In order to obtain a clean, reflecting surface, the polishing procedure usually starts with a coarse grit to remove any big defects or excess adhesive and is then finished with finer grits. To guarantee consistency, the connection is polished using a rotary or linear motion while the film is positioned on a polishing pad.

The Interaction of Polishing and Curing

The Fiber Polishing Film makes sure that the connector end-face is completely smooth and aligned for optimal signal transmission, while the Fiber Curing Oven provides a strong and dependable connection between the fiber and the connector. These two instruments work in tandem to ensure that fiber optic cables are capable of meeting the enormous data demands of the modern digital world.

Follow our Facebook and Twitter for more information about our product.

Know About The Importance of Fiber Curing Ovens

Every stage of the production process is vital in the complex field of optics, where accuracy and dependability are crucial. The Fiber Curing Oven is one of the many pieces of equipment used in this field that is particularly notable due to its essential role. This modest but essential piece of equipment is essential to the creation of optical fibers, guaranteeing their performance, stability, and longevity.

The newly drawn optical fibers are heated to a high temperature during the fiber curing process to harden the coating materials that were applied during the drawing process. The regulated atmosphere required for this curing procedure is provided by fiber curing ovens. To guarantee the best possible curing of optical fibers, they precisely control the temperature and ambient factors.

Importance for the Manufacturing of Optics

Enhanced Durability: To preserve their integrity, optical fibers must withstand a variety of mechanical forces and environmental conditions. Fiber Curing Ovens increase the protective covering surrounding the fiber during the curing process, greatly increasing its endurance. This guarantees that the optical fibers will be able to endure the harshness of being deployed in a variety of applications, such as medical equipment and telecommunications.

Stability and Reliability: In optical systems, where even small oscillations can cause signal loss or degradation, stability is crucial. By removing irregularities in the curing process, Fiber Curing Ovens and Fiber Polishing Film are essential to maintaining the durability of optical fibers. This increases the consistency of optical characteristics in the fibers and improves the dependability of optical systems.

Optical Performance: The curing procedure affects the fiber's optical characteristics in addition to fortifying the protective covering. Manufacturers may precisely adjust the curing parameters, such as temperature and time, to customize the optical properties of the fibers to fulfill certain needs. This optical performance customization capability comes in very handy for situations where accurate signal transmission is essential.

Process Efficiency: By simplifying the curing step, Fiber Curing Oven and Fiber Cable Stripping Machine improve the production process's overall efficiency. Large quantities of fibers may be produced in these ovens, enabling high-throughput manufacturing. Additionally, by minimizing the need for personal intervention, their automated control systems lower the risk of mistakes and guarantee consistent outcomes.

Next: A Guide to Network Patch Cables: Types, Uses, and Best Practices

Get To Know About Stripping Fibers

A fiber gets damaged during stripping with a fiber stripper that won't always break right away. A damaged fiber has a good chance of surviving processing on the manufacturing line intact. There is no way to determine if the fiber has been harmed or not unless the weaker fiber breaks during industrial processing.

A wire stripper with the appropriate settings or a specialist fiber stripper can be used to cut and remove the cable jacket if the fiber is not damaged. Some fiber strippers are more practical because they contain grooves for both the jacket and the fiber. Cutting the aramid fibers requires the use of specialized, ultra-sharp scissors. Since doing so will ruin them and blunt the cutting edge, they shouldn't be utilized to cut anything else. We may now begin to strip the fibers. You must select the instrument you employ for this crucial phase. There are three different kinds of fiber optic stripping tools that are often employed; these are Miller, No-Nik, and Microstrip, respectively.

Millers are fairly tough and have a wire stripper-like appearance, but using them takes skill. Millers are difficult for left-handed users to handle comfortably because they must hold them at an angle. Due to their lower technical requirements and ability to strip greater lengths of fiber at once, the other two strippers are typically preferred by fusion-splicer operators. To achieve thorough stripping, every tool has to be well cleaned with fiber cleaner.

It takes a certain amount of tugging to strip the fiber of its buffer layers. With one hand, you grasp the cable or fiber while using the other to grip the stripper. The fiber or cable may be held safely and firmly by wrapping it around a finger a few times.

After removing the colored plastic buffer coating with a 900-micron thickness, there can still be some residue on the fiber. When the stripper did not cut through both layers of coating, there was just the main buffer coating, which has a diameter of 250 microns, left. All of the residues should be eliminated by applying a tight clamp. If you can see portions of the inner buffer, you can strip once again forcefully gripping the stripper to cut through all buffer coats. The fiber cannot be placed into the connection if the buffer coating is not completely removed. You can buy fiber splicer online.

Are You Curious To Know About Curing Oven? Read This

Curing Oven

Designed to increase the strength and lasting of the material, and industrial fiber curing oven is a thermal processing equipment piece, which accelerates a chemical reaction. In simple words by elevating the temperature of sample material to within or above a specific limit, a curing oven achieves this standard.

In engineering raw materials such as thermoset polymers, rubber, and synthetic adhesives, curing ovens are commonly used. In enhancing the properties of construction materials in situ, the process of chemical curing is used, but to encourage thermosetting in situ over extended periods this application requires highly specialized curing apparatuses.

Polymerization: a common curing oven application

Polymerization is referred to as the formation of complex polymer chains from small molecule monomers across a broad range of chemical species and functional groups. For some of the most industrially consumed plastics worldwide, including polypropylene, polyvinyl chloride, and polyethylene you will find this particular reaction being responsible.

The formation of high-strength bonds between monomers is encouraged by curing ovens and it synthetically grows these materials in high-temperature environments.

Through industrial curing, fiber polishing epoxy resins can also be formed and it occurs by heating liquidized polyether to create a network of long-chain molecules. In construction and engineering, with countless applications as an intermediary product, these products are ubiquitous.

To improve the strength and durability of material industrial curing ovens are used and it is achieved by thermal processing specialists by applying heat to accelerate a desirable chemical reaction. In simple words, by raising the temperature of sample material to within or above a specific limit a curing oven achieves this bar. This is very much enough to increase the physiochemical linkages that bind the material together and hence improve the mechanical characteristics of the product.

To facilitate the required reaction in the curing oven it is usual for operators to add one or more catalyzing agents. In the above manner curing ovens and fiber polishing film are employed in several raw materials such as synthetic adhesives, thermoset polymers, and rubber employ. Through chemical curing in situ enhancements can be brought, but highly specialized curing apparatuses are needed in this type of curing to ensure proper thermosetting in situ over extended periods.

Benefits Offered by Fiber Optic Cables

Coated with a final outer layer, a cable is a buffer for extra protection from other damaging agents and moisture.

Through two main types of fiber optic cables, fiber curing oven, Fiber optic communication moves on. To transmit signals and in multi-mode cables, Laser lights move through single-mode light-emitting diodes or fiber cables LEDs do this job. As compared to single-mode cables, Multi-mode cables are thicker and heavier. In fiber-optic communication, the basic principle of total internal reflection works to transmit light signals to the place of its destination from its place of origin.

The technology of optical fiber communication comes in handy in inspecting plumbing, sewer lines, medical imaging, and Internet signals, and even in digital television connections apart from telecommunications. The benefits are as below:

Cost-effective: As compared to copper wire, Fibre optic cables and fiber crimping machines are more cost-effective. The customers, as well as service providers, save a lot of money by replacing copper with optical fibers. Another advantage is the higher carrying capacity of optical fibers than copper wire. Great help to the customers is the Transmissions of more signals at a time without much interference.

Less power is used: save a considerable amount of money on power and thus, the signal generators used in optical fiber communication use lesser energy. The computer networks pick them easily as the signals are digital.

Lesser signals degradation: Fibre optic cables over a long-range can retain the signal intensity in comparison to traditional wires. The light signals transmitted through these cables with each other do not interfere and thus you receive signals that are clearer and easier to understand. You can buy fiber polishing fixtures online.

Flexible and lighter: There is a space shortage in many urban places. This limited available space is shared among power wires, sewer lines, and subways. They being lighter can fit in smaller and crowded places. This very character makes them move through every corner quite easily as Flexibility is their gifted benefit.
