Thursday, July 13, 2023

The Fiber Tool Kit: Essential Equipment for Network Professionals

Modern communication systems are now based on fiber optic networks since they provide unparalleled data transport capabilities. Professionals in the field of networking rely on the Fiber Tool Kit, a comprehensive set of tools, to effectively construct, manage, and troubleshoot fiber optic networks. We will examine the crucial tools that make up a Fiber Tool Kit in this blog article and highlight their importance in guaranteeing optimal network performance.






Fiber Stripper: The fiber optic cable remover is the most important and basic item in any Fiber item Kit. As the name implies, this instrument is intended to remove the fiber optic cable's protective covering without harming the fragile fibers inside. Fiber optic cable strippers exist in a variety of designs, including adjustable, pre-set, and mid-span strippers, to accommodate varying cable diameters and stripping needs.



Fiber optic cleaver: A fiber optic cleaver is a precise instrument used to precisely cut fiber optic cables. It guarantees a precise cut that is clean and smooth, which is necessary for effective fiber splicing or termination. Cleavers use the score-and-break technique to precisely cut the fiber's end face, allowing for the best possible light transmission into the fiber core.



Fiber Optic Power Meter: A fiber optic power meter is used to gauge the intensity of the optical signal traveling over a fiber optic connection. This tool aids network specialists in assessing signal losses, locating broken connections, and ensuring appropriate power levels for the best possible data transfer. Depending on the particular needs of the activity, power meters come in a variety of forms, including handheld, tabletop, and portable models. A Fiber Splicer is also a useful tool.



Fiber Optic Connector Inspection Microscope: With the use of this instrument, network specialists may check connection end faces for debris, blemishes, or other flaws that can affect signal transmission. High magnification and lighting allow inspectors to see even the smallest flaws and conduct the proper cleaning or repair measures.




Fiber Tool Kit: Maintaining optimum network performance necessitates keeping fiber optic connections clean. Lint-free wipes, cleaning solutions, cleaning sticks, and swabs are frequently included in fiber optic cleaning kits. These devices aid in cleaning fiber optic connections of impurities like dust, oil, and fingerprints, assuring dependable and uninterrupted data transfer.

Follow our Facebook and Twitter for more information about our product.

Friday, January 13, 2023

Working of a Fiber Optic Fusion Splicers

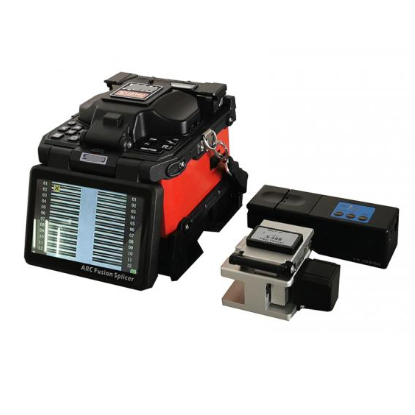

A fiber optic fusion splicer

fiber splicer is a tool that joins two optical fibers at their end faces using an electric arc to create a single long fiber. The resultant junction, also known as a fusion splice, permanently unites the two glass fibers end to end, allowing optical light signals to move with negligible loss from one fiber to the other.






The way a fusion splicer functions

Optical fibers need to be meticulously cleaned, freed of their outer jackets and polymer coatings, and then properly split to create smooth, perpendicular end faces before they can be effectively fused. Each fiber is then put into a holder in the splicer's enclosure once all of this has been done. The remaining parts of the procedure, which entail three processes, are then handled by the fiber optic fusion splicer.



Alignment: To ensure that the resulting splice is as smooth and attenuation-free as possible, the fusion splicer makes minute modifications to the locations of the fibers until they are perfectly aligned. The optical power meter, video camera, or viewing scope's magnification allows the fiber optic technician to see the alignment of the fibers while they are being aligned. You can strip the cable using fiber stripper.



Impurity Burn-Off: When it comes to fusion splicing, you can never be too clean since even a small amount of dust or other impurities can seriously impair a splice's capacity to transfer optical information. Many fusion splicers include an additional precautionary cleaning step in the process even if fibers are manually cleaned before being introduced into the splicing device. This step involves generating a little spark between the fiber ends before fusing to burn off any lingering dust or moisture.




Fusion: The ends of the fibers should be fused to produce a permanent splice once they have been appropriately positioned and any leftover moisture and dust have been burnt out. A second, bigger spark from the splicer melts the ends of the optical fibers without causing the cladding and molten glass core to converge. The final fusion splice is created by connecting the melted fiber tips. The next step is to conduct estimated splice-loss testing, with the majority of fiber fusion splices often exhibiting an optical loss of 0.1 dB or less. The fiber tool kit is of great use.

Follow our Facebook and Twitter for more information about our product.

Tuesday, November 15, 2022

Get To Know About Stripping Fibers

A fiber gets damaged during stripping with a fiber stripper that won't always break right away. A damaged fiber has a good chance of surviving processing on the manufacturing line intact. There is no way to determine if the fiber has been harmed or not unless the weaker fiber breaks during industrial processing.

A wire stripper with the appropriate settings or a specialist fiber stripper can be used to cut and remove the cable jacket if the fiber is not damaged. Some fiber strippers are more practical because they contain grooves for both the jacket and the fiber. Cutting the aramid fibers requires the use of specialized, ultra-sharp scissors. Since doing so will ruin them and blunt the cutting edge, they shouldn't be utilized to cut anything else. We may now begin to strip the fibers. You must select the instrument you employ for this crucial phase. There are three different kinds of fiber optic stripping tools that are often employed; these are Miller, No-Nik, and Microstrip, respectively.


fiber stripper



Millers are fairly tough and have a wire stripper-like appearance, but using them takes skill. Millers are difficult for left-handed users to handle comfortably because they must hold them at an angle. Due to their lower technical requirements and ability to strip greater lengths of fiber at once, the other two strippers are typically preferred by fusion-splicer operators. To achieve thorough stripping, every tool has to be well cleaned with fiber cleaner.


Fiber Cleaner

It takes a certain amount of tugging to strip the fiber of its buffer layers. With one hand, you grasp the cable or fiber while using the other to grip the stripper. The fiber or cable may be held safely and firmly by wrapping it around a finger a few times.

After removing the colored plastic buffer coating with a 900-micron thickness, there can still be some residue on the fiber. When the stripper did not cut through both layers of coating, there was just the main buffer coating, which has a diameter of 250 microns, left. All of the residues should be eliminated by applying a tight clamp. If you can see portions of the inner buffer, you can strip once again forcefully gripping the stripper to cut through all buffer coats. The fiber cannot be placed into the connection if the buffer coating is not completely removed. You can buy fiber splicer online.


Wednesday, August 10, 2022

Absorb the Basics of Fibers Fusion Splicing

The two bare fiber ends are fused by heat in the fusion splicing process with fiber splicer. To be more specific, a little space is left between the fiber ends when they are originally brought into close contact. They are pressed together such that the ends fuse after being heated for a brief period until the surfaces melt. High-voltage electric discharges are frequently used to achieve heating.




Characteristics of Fusion Splicers

Typically, equipment producing high-quality fusion splices will contain the following characteristics:

  • Precision anchoring of the fiber ends is made possible by carefully designed fiber clamps. Micrometer screws are used to accurately adjust at least one clamp.
  • It is further required to spin one of the fibers about its axis when splicing polarization-maintaining fibers or multi-core fibers.
  • Examining the fiber ends' alignment and quality are possible under a microscope. A knob for alternating between two orthogonal directions of view is frequently included. Usually, the fiber cores are also visible.
  • Without touching the fibers, one can clean the surfaces by using a fiber cleaner.



Several unique qualities:

  • A camera picture or the monitoring of the optical power throughput may be used by some splicers to automatically align the fibers. For the latter, a photodetector must be coupled to one fiber end and a light source to the other.
  • The effectiveness of the resultant splice may also be measured by some instruments.
  • While some fusion splicers are designed specifically for use with common telecom fibers, others may work with a wider variety of fibers, such as those with different cladding widths.
  • Some tools simply provide a better level of precision, which is necessary, for example, to splice fibers for space division multiplexing.



Gains from Fusion Splicing

Fusion splicing provides several important benefits over other methods for creating fiber junctions, including the following:

  • Nothing else offers lesser reflections and smaller transition losses.
  • The resultant joints are extremely stable, requiring little alignment maintenance and being impervious to the effects of dust.
  • The only component or material needed is to cover the fiber after splicing.




For outdoor fiber cables, fusion splices are frequently used. In factories, reliable fiber-optic equipment like fiber lasers and amplifiers are also created via fusion splicing. fiber stripper is also a useful tool.

Friday, February 11, 2022

Optical Fiber Fusion Splicing and its Benefits

Optical fiber fusion splicing

Optical fiber fusion splicing is a welded joint that is formed between two optical fibers. Compared with another temporary joint such as a mechanical splice fiber splicer is a permanent, low-loss, high-strength joint. In the optical network, optical fiber fusion splices play a crucial role.



Fusion Splicing Process

The main goal is to create a joint with minimum insertion loss yet with mechanical strength and long-term reliability that matches well with the fiber itself.

The ideal process needs to be fast, inexpensive and it should not need expensive equipment. But in reality, among different applications and requirements, the process requires trade-offs. For example, long-term reliability is the most important goal for a fiber stripper and undersea telecommunications.

The Benefits

For interconnecting fibers such as fiber optic connectors and mechanical splicing, there are other approaches too. Compared to these two, fusion splicing has many benefits as explained below.

It provides the lowest insertion loss

It can even withstand extremely high temperature changes

It is one with the Lowest back reflection (optical return loss ORL)

It is very compact

Quite Permanent

It also prevents dust and other contaminants from entering the optical path

Provides Highest mechanical strength

The major steps involved in the process of fusion splicing can be summarized as the following.

  • Optical fiber stripping
  • Fiber cleaving
  • Fiber alignment
  • Fiber welding
  • Insertion loss estimation
  • Pull tension strength testing
  • Splice protection with fusion splice sleeve

What are the Different Splicing Types?

In three types fusion splicing environment and applications can be roughly divided:



  • Field splicing
  • Factory splicing
  • Laboratory splicing

The assembly of undersea fiber cables aboard fiber deployment ships is a very important example of field splicing. One example of factory splicing could be the assembly of fiber optic passive devices such as a WDM. An example of laboratory splicing is performed by researchers by fusion splicing the newest developed fibers so that they can test their compatibility with the existing industry-standard fibers.

Fiber fusion splicing includes various concepts and fiber tool kit from many subjects including mechanical engineering, heat transfer, material science, optical waveguide theory, fluid mechanics, and more.


Monday, October 11, 2021

Different Types of Mechanical Splicing

If light travels in a fiber splicer, then it needs a continuous, non-disruptive path so that it can travel a long distance that too without any big signal loss. There comes the requirement for light signals to be amplified, cross-connected, added, or dropped in a radius of hundreds of kilometers fiber link. As a standard practice, two fibers are connected in these types of connections. You can perform this connection with the help of connectors and splicing.



Compared to multimode fibers, single-mode fiber needs much higher tolerances for the process of splicing to be accomplished. Compared to multimode fiber mechanical splicing, single-mode fiber mechanical splicing is more costly.

Splicing is the process in which without any use of connectors two fibers are joined together. There exist two types of fiber: fusion splicing and mechanical splicing. Splicing needs to be done during installation or repair.

When compared to connectors, fiber cleaner has lower loss and better mechanical integrity. But connectors help make system configuration much more flexible. So, in outdoor applications to connect fiber cables, there is the use of splices.

Different Types of mechanical splicing

Ribbon V-Groove type

Capillary type doesn't work anymore for multiple fiber cables such as ribbon fibers. Fiber ribbon is placed in a V-shaped groove array, with each fiber place in its v-groove. In this V-groove array, two ribbon fibers are put together, and then on the top, a cover plate is applied. In multi fiber splicing, this V-groove splice is very much useful.

Capillary type

In capillary type mechanical splicing, into a thin capillary tube, there is the insertion of two fibers. The tube has an inner diameter that is then matched with the fiber's cladding diameter. Then there is pushing of these two



fiber ends towards inwards till they meet. In lowering the back reflections index matching gels are inserted in the center. With the help of compression or friction, these fibers are held in place.

Elastomeric type

Elastomeric splice is specifically designed for lab testing or emergency fiber repairs. At first, into the hole an index matching gel is injected, then there is the insertion of one fiber stripper till it reaches about halfway. Then from the other end, another fiber is inserted till it meets the first one.


Tuesday, August 10, 2021

Ways By Which Fibre optic splicing can be done

Instead of using optical fiber connectors, it is possible to splice two optical fibers together. fiber splicer can be defined by the fact that between two fibers optic cables it provides a permanent or relatively permanent connection. Few manufacturers offer fiber optic splices that can be disconnected, but for repeated connection and disconnection they are not intended.



The need for fiber optic splices arises on many occasions. One of the most common is when a fiber optic cable that is available for the required run is not sufficiently long. In this case, to make a permanent connection it is possible to splice together two cables.

In two ways fiber optic splices can be undertaken:

Mechanical splices

Fusion splices

When there is a need for the splices to be made quickly and easily there is the use of mechanical splices or fiber cleaner. It is important to strip back the outer protective layer on the fiber optic cable to undertake a mechanical fiber optic splice then clean it and perform a precision cleave or cut. It is necessary to get a very clean cut while performing the cut to the fiber optic cable.

Once cut off the ends of the fibers that are to be spliced are placed into a precision-made sleeve. To maximize the level of light transmission they are accurately aligned and then they are clamped in place.

Mechanical and fusion splices

In different applications, there is the use of the two types of fiber optic splices. For applications where splices need to be made very quickly the mechanical ones are used. For mechanical fiber optic splices few of the sleeves are advertised as allowing connection and disconnection. In this way in applications, a mechanical splice can be used where the splice may be less permanent.



A lower level of loss and a high degree of permanence is offered by fiber stripper. However, they may need the use of expensive fusion splicing equipment. Because of this, they are used more for the long high data rate lines that are installed, and once installed they are unlikely to be changed.


Tuesday, May 11, 2021

Steps of Fusion Splicing Explained Here

Permanently joining two fibers together is the process of Fiber splicing with a fiber splicer. These are designed for easy reconfiguration on patch panels or cross-connect, unlike fiber connectors.



 Fusion splicing is one type of splicing. By an electric arc, two fibers are welded (fused) together in fusion splicing. The most widely used method of splicing is Fusion splicing as it provides for virtually no back reflection and the lowest insertion loss. Between two fibers, Fusion splicing provides the most reliable joint. By an automatic machine called fusion splicer, Fusion splicing is done.

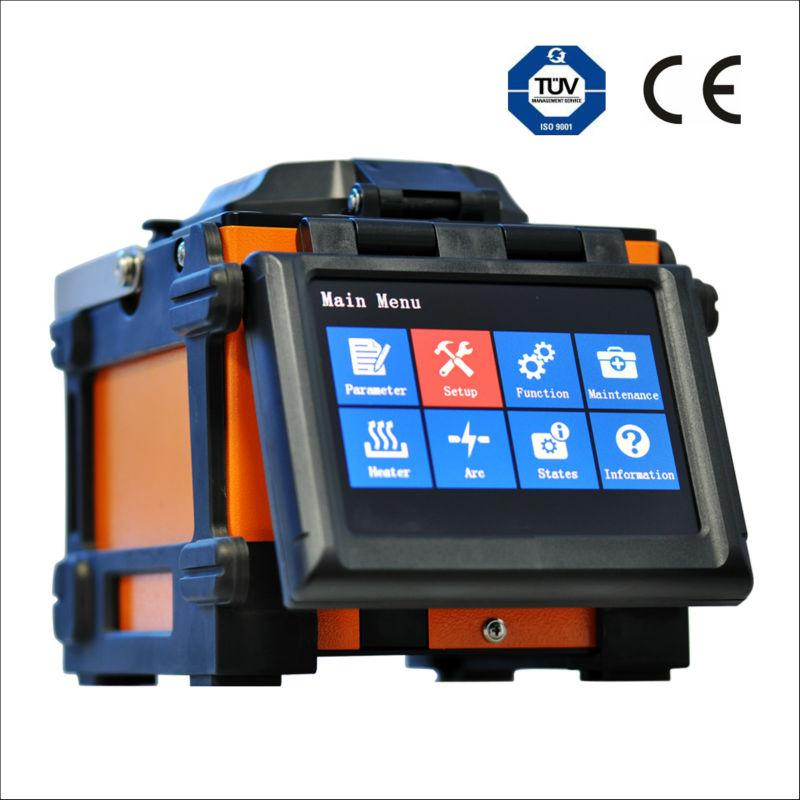

Fusion splicer

As we said above, used to weld (fuse) two optical fibers together, the fusion splicer is the machine. This process is known as fusion splicing. On the fusion splicer, the fiber ends are placed in alignment fixtures after being prepared and cleaved. The fiber ends are heated with electrodes at the press of a button. They are then brought together and fused.

You need to either set the splicing parameters yourself or choose factory-recommended settings as Fusion splicers are automatic machines.  To fusion splicing, there are five basic steps with a splicing machine.

  • The sleeve for fusion splice protection must be used.
  • The fiber is then stripped with a fiber stripper. Down to the 125um bare fiber, Strip back all-fiber coatings. With 99% isopropyl alcohol, clean the bare fiber.
  • The fiber is cleaved. With a high precision cleaver, the fiber needs to be cleaved. With a recommended cleaver, most splicing machines come. On the quality of cleave, the quality of the splice is based.
  • In the fusion splicer, Put the fibers into the fiber holders. To start the fusion splicing, Press the start button.
  • To protect the splicing joint, the protection sleeve is Heat shrinked

Some tips for splicing technicians and contractors



  • Maintain a clean splice environment and clean equipment, being especially wary of dusty and windy conditions.
  • For maintenance and setup of all splice equipment, follow the applicable equipment manufacturer’s guidelines. Maintenance requirements are needed by all fusion splicers which in the operating manual should be described. They need occasional replacement and electrode alignment apart from cleaning regularly. For servicing, the manufacturer’s requirements must be followed.
  • With the total link power budget in mind, Splice loss specifications should be set and the average splice loss must determine it.
  • As an initial no-go or go evaluation of the splice, the estimated splice loss reading of the fusion splicer must be used.

Thursday, August 6, 2020

Get to Know about the Fiber Optic Splicing

To travel a long distance without too big signal loss, Lights travel in optical fibers need a non-disruptive and continuous path. But the light signals need to be cross-connected, amplified, dropped or added and much other processing in hundreds of kilometers fiber link. As a standard practice, two fibers are connected to these connections. With fiber splicer and connectors, this connection can be done.


Without using connectors, Splicing is the practice of joining two fibers together. Two types of fiber splices exist mechanical splicing and fusion splicing. During repair or installation, Splicing may be made.

While connectors make the system configuration much more flexible Splices generally have better mechanical integrity and lower loss than connectors. So typically connect connectors terminate fiber cables and fiber cables in outdoor applications, splices are used inside buildings.

Mechanical Splicing

To join two fibers together end to end, mechanical fixtures are used by Mechanical splicing. Either by gluing them together or by clamping them within a structure mechanical splicing joins two fiber ends. fiber stripper is very common.

As compared to multimode fibers, Single-mode fiber requires much tighter tolerances than for splicing. So for single-mode mechanical splices, special equipment is often required. As compared to multimode fiber, this makes single-mode fiber mechanical splicing much more expensive for mechanical splicing.

Fusion Splicing

Generated by an electric arc and fuse two glass fibers, Fusion splicing, and fiber identifier is to use high-temperature heat. The tips of two fibers are heated and butted together so they melt together. With a fusion splicer, this is normally done which mechanically aligns the two fiber ends and then fuses them, applies a spark across the fiber tips.


The mechanical splicing benefits

Mechanical splicing does require higher consumable costs, but it doesn't need costly capital equipment to work. So mechanical splicing is the best choice for organizations that don't make a lot of splicing. For emergency repairs, it is also best suited.


Saturday, July 11, 2020

All aboutFiber Optic Light Sources

Over the decades like optical fiber, fiber optic light source technology has improved dramatically. These advances have greatly increased reduced costs and data transmission rates. To support every standardized network with a variety of connector choice fiber optic transmitters are available.

Types of Fiber Optical Light source that is available

While projecting a near-microscopic beam of light into optical fiber light sources for optical fiber communication must be able to turn on and off millions to billions of times per second. On top of the performance, in a small package, they must be reasonably priced, highly reliable, easy to use, and available.



For fiber optic communication basically, there are two types of semiconductor light sources available - The LED sources and laser sources. You can buy the optical power meter online.

What is a LED light source?

A basic LED light source is a semiconductor diode with a p region and an n region. Current flows through the LED  when the LED is forward biased. When current flows through the LED, the junction where the p and n regions meet emits random photons. This process is known as spontaneous emission.

What is a Laser light source?

The laser is a semiconductor diode with a p and an n region like the LED. Unlike LED, with reflecting mirrors on each end of the diode the laser has an optical cavity that contains the emitted photons. One of the reflecting mirrors is only partially reflective. Because of this mirror, some of the photons escape the optical cavity.


For high-speed networking popular laser source is the vertical-cavity surface-emitter laser (VCSEL). This semiconductor diode is an ideal choice for the gigabit networking options and combines high bandwidth at a low cost. The optical alignment machine is of reasonable price.

The laser source works flawlessly in a single-mode fiber environment. Its highly collimated beam of light is easily aimed right down the center of the narrow single-mode core and propagates in essentially a single-mode transmission, with all the attendant advantages.


Tuesday, November 26, 2019

A Brief Note on Optical Light Source


With the advent of technology, our great thinkers and innovators have designs optical fiber and optical light source. Talking about fiber optic light source technology particularly in this topic, we can say that it has drastically improved the before that serves to expanded data transmission rates and diminished expenses. It bolsters each standardized system with an assortment of connector choices.



Optical Light Source:

When it comes to optical fiber communication, the optical light source should turn on and off millions to billions of times each second. Apart from that, they must be economical, extremely dependable, simple to utilize and accessible in a small package. This lighting source categorized into two types for fiber optic communication such as LED sources and laser sources.

An LED light source is a semiconductor diode with a p area and an n region and current flows through it the intersection where the p and n areas meet radiates random photons.

On the flip side, the laser is also a semiconductor diode with a p and an n region and it has an optical hole that contains the produced photons with considering mirrors each end of the diode. This mirror enables a portion of the photons to get away from the optical hole.

However, we can say that laser source is more popular for high-speed networking and it consolidates high data transmission with minimal effort and the best choice for the gigabit organizing options. Most essentially, the exceptionally collimated light emission of laser source can be effectively pointed directly down the focal point of the narrow single-mode core to spreads. It offers different benefits as well.

Are you planning to buy these instruments? You can go for online buying. There are many reputed companies provide it as per your needs. Also, some other instruments such as optical alignment machine and fused biconical taper machine can be purchased online at the best prices.

In this case, you have to find out the best supplier carefully who can give you the best deal. At the time of buying these devices, you have to consider the quality and cost.

Please Follow Us on Facebook and Twitter

Tuesday, November 19, 2019

How to choose the PLC splitter correctly?


PLC splitter is a straightforward latent segment which assumes a significant job in the uses of innovations like GPON, EPON, and BPON. It permits a strand of fiber optic sign being identically split into a few strands of the optical sign, which can bolster a solitary system interface to be shared by numerous endorsers. While choosing it, split proportions ought to consistently be considered. Be that as it may, with the system cabling condition getting progressively mind boggling, different PLC splitters with various bundle structure factors are being designed. Presently the bundle structure factor of it is likewise a key factor to be considered. This post will present the most ordinarily utilized PLC splitters in various bundle structure factors for your reference during determination.


Uncovered Fiber PLC Splitter

Uncovered fiber PLC splitter is regularly utilized in FTTx ventures. It leaves exposed fiber on the entirety of its closures. Consequently, they can be grafted by arranging engineer unreservedly as indicated by the applications. Then, it requires minimal space during cabling. They can be introduced in fiber optic joining conclusion effectively to give FTTH signal conveyance.

Fanout PLC Splitter

Fanout PLC splitter by and large uses 0.9mm cushion fiber, included with a length of strip fiber ended with fanout pack behind the PLC split chip. Its splitter proportions additionally come in different sorts. The accompanying picture shows a 1:8 fanout form which is ended with SC/APC connectors.

ABS PLC Splitter

ABS PLC splitter uses the ABS plastic box to hold the splitter chip. The inbound filaments and dissemination strands are organized on a similar plate of this ABS box, which can give simpler and increasingly adaptable cabling. But giving solid security, it can likewise be introduced in an assortment of boxes or fenced in areas. It is usually to introduce it in a standard 19-inch rack unit.
LGX Box PLC Splitter

LGX Box PLC splitter resembles an MTP LGX tape. It houses the entire splitter inside a metal box and leaves fiber optic connectors for both inbound strands and circulation filaments on its front board. The LGX splitter can be utilized independently or be introduced in the standard rack unit or fiber walled in areas for better cabling.

Rack Mount PLC splitter

Rack mount PLC splitter is intended to meet the necessity of high cabling thickness for server farms or server room. It very well may be solidly introduced on the server farm or server racks. It is a perfect answer for a high thickness cabling condition. Rollball can give PLC splitter ports up to 64 in a 1U 19-inch rack.
